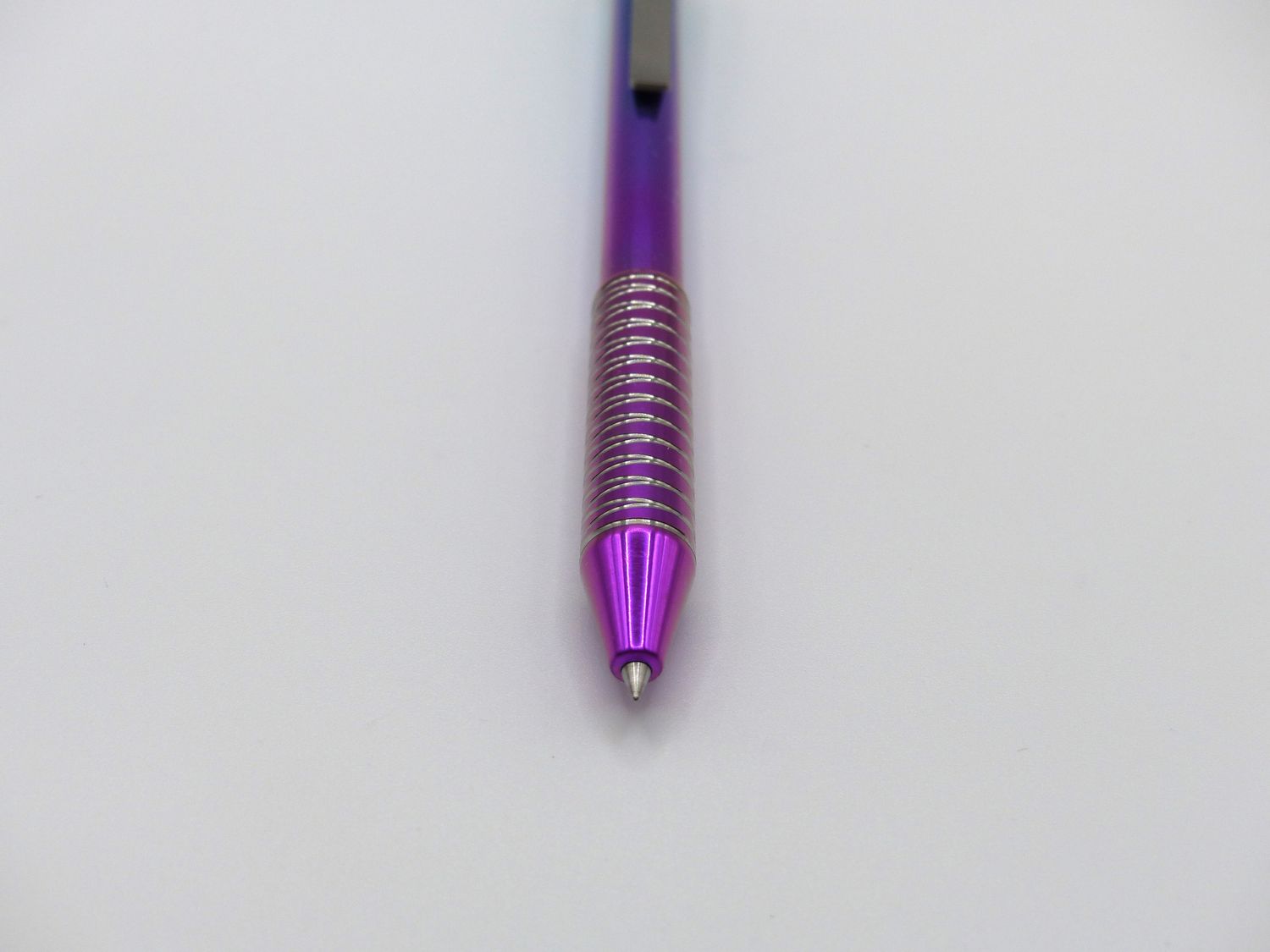

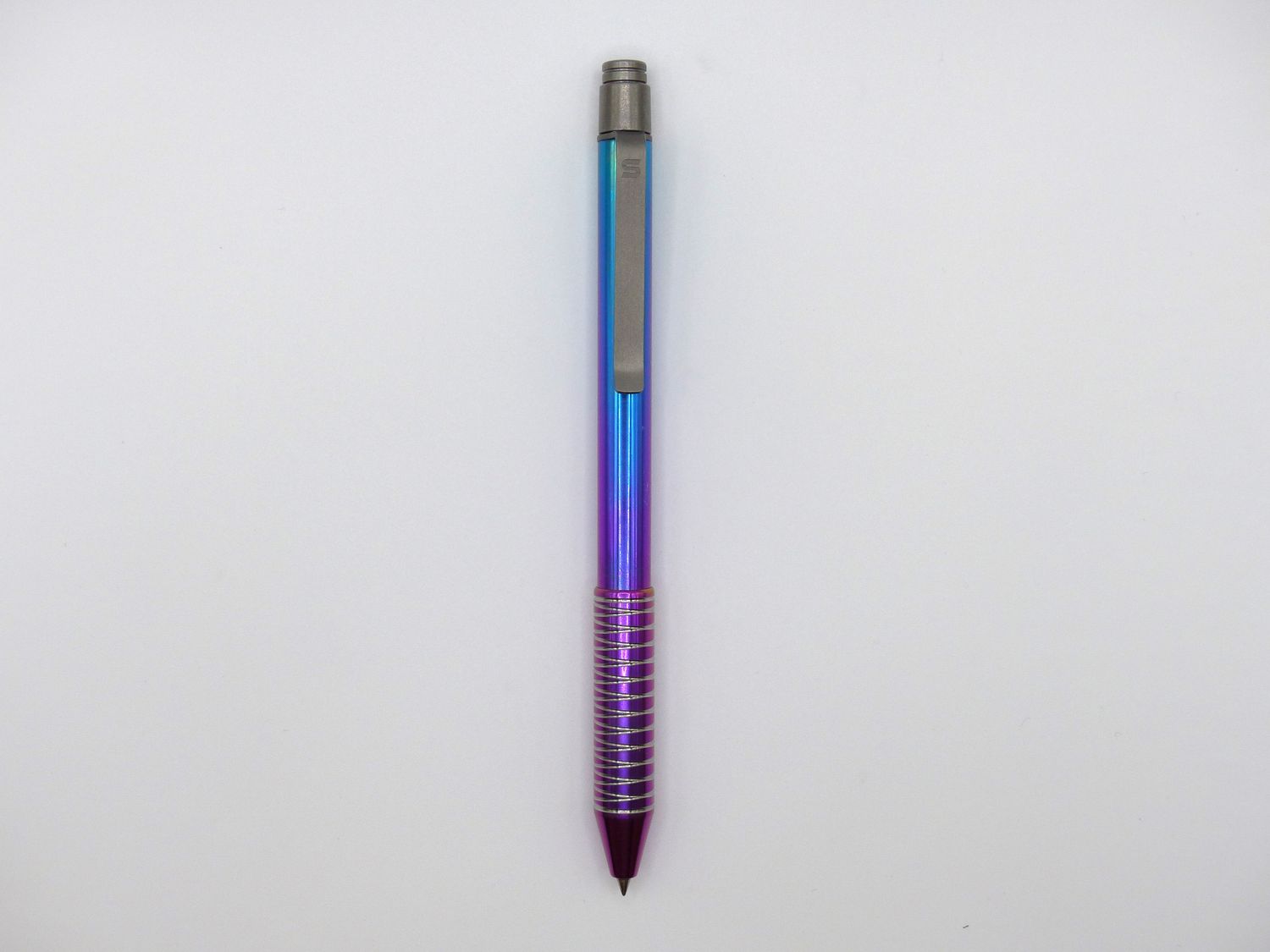

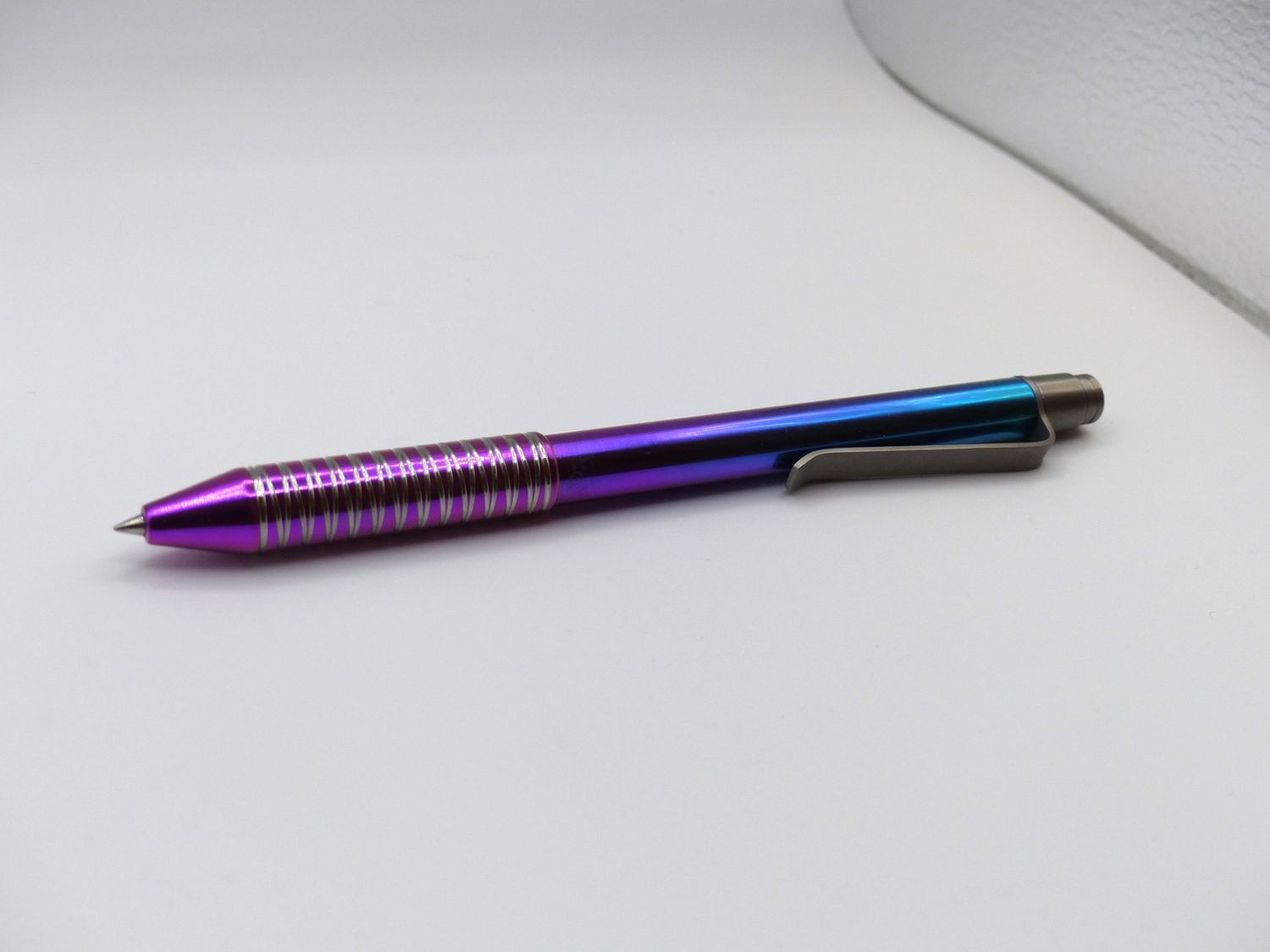

Seguin Ink V1 Polished Anodized Fade

POLISHED ANODIZED FADE (CAMERA LIGHTING DECIEVES SLIGHTLY, FADE IS MORE GRADUAL IN PERSON)

ALL PURCHASES INCLUDE HAND SEWN LEATHER CARRYING POUCH, AND 3D PRINTED ADAPTER FOR PARKER STYLE REFILL

The Seguin Ink Click V1 is my first production pen, its simplicity mixed with the sleek details give it a very satisfying look and feel in the hand. A larger grip with the slimmer body allows for some of the weight in the back to be brought back forward and give it a very balanced feel without any excess bulkiness.

Dimensions

Length (5.2") Grip diameter (0.406") Body diameter (0.36")

Materials

Body, Tip & clip are all 6Al-4V grade 5 Titanium sourced within Canada. The click mechanism is a 416 Stainless Steel Swiss lathe part manufactured in the USA and purchased from Tuff Writer.

Machining

I machine all components except the click mechanism my self from 6Al-4V grade 5 Titanium round bar on my Tormach 8L CNC lathe. All threads are single point cut for tight smooth threads. Either a bead blasted or tumbled finish. The clip is laser cut and engraved, it is then de-burred and bent to the exact profile I want.
